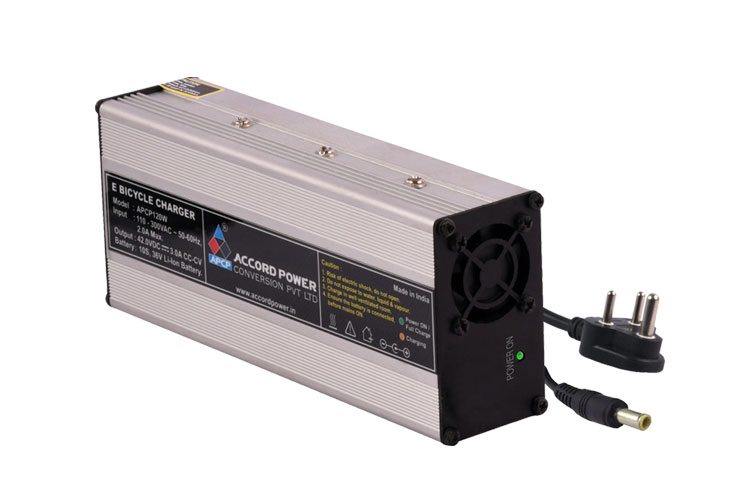

E-Cycle Charger


Specifications:
DC Output :
Maximum Output Voltage 42 VDC
Nominal Voltage 36 VDC
Maximum Current 2.0A / 3.0A
Efficiency > 90%
Design Topology Flyback

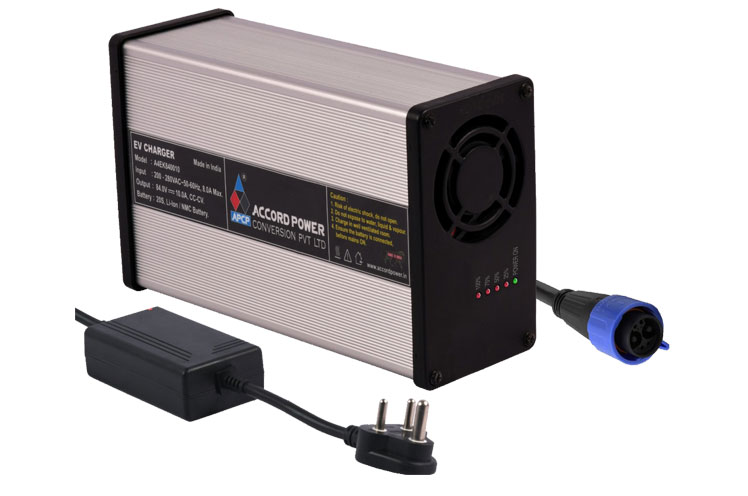

Charger for 2 Wheeler


Specifications: 6.0A / 7.5A / 10.0A Charger
DC Output :
Maximum Output Voltage NMC: 54.6V / 58.8V / 67.2V / 71.4V / 84.0V
LFP : 54.75V / 58.4V / 69.35V / 73.0V / 83.95V / 87.6V
Nominal Voltage 48.0V / 60.0V / 72.0V / 74.0V
Maximum Current 6.0A / 7.5A / 10.0A.
Efficiency > 92%/td>
Design Topology Two switch forward / LLC.

Charger for 3 Wheeler

Specifications: 15.0A / 18.0A / 20.0A Charger
DC Output :
Maximum Output Voltage NMC: 54.6V / 58.8V / 67.2V / 71.4V / 84.0V
LFP : 54.75V / 58.4V / 69.35V / 73.0V / 83.95V / 87.6V
Nominal Voltage 48.0V / 60.0V / 72.0V / 74.0V
Maximum Current 15.0A / 20.0A / 25.0A / 30.0A.
Efficiency > 92%/td>
Design Topology LLC

Lead Acid E-Rikshaw Charger


DC Output :
Maximum Output Voltage 65.0V / 84.0V
Nominal Voltage 48.0V / 60.0V.
Maximum Current 15.0A / 18.0A / 20.0A
Efficiency > 92.0%
Design Topology LLC

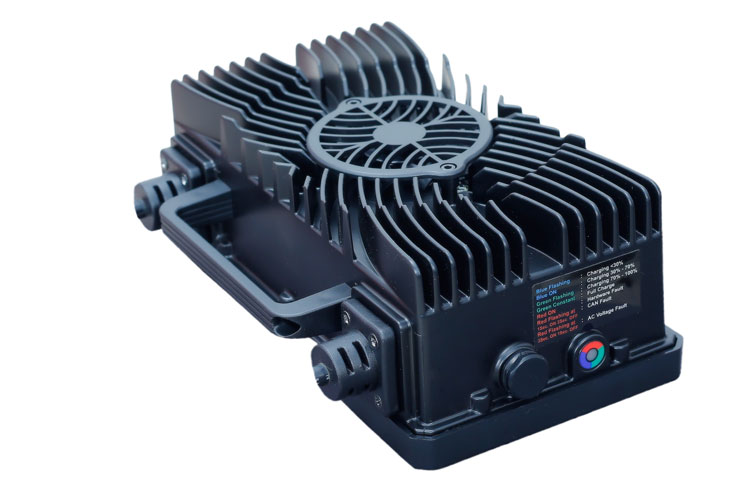

2 - Wheeler Charger (CAN & RS485)



Specifications: 6.0A / 7.5A / 10.0A Charger
DC Output :
Maximum Output Voltage NMC: 54.6V / 58.8V / 67.2V / 71.4V / 84.0V
LFP : 54.75V / 58.4V / 69.35V / 73.0V / 83.95V / 87.6V
Nominal Voltage 48.0V / 60.0V / 72.0V / 74.0V
Maximum Current 6.0A / 7.5A / 10.0A
Efficiency > 92%/td>
Design Topology Two switch forward / LLC.

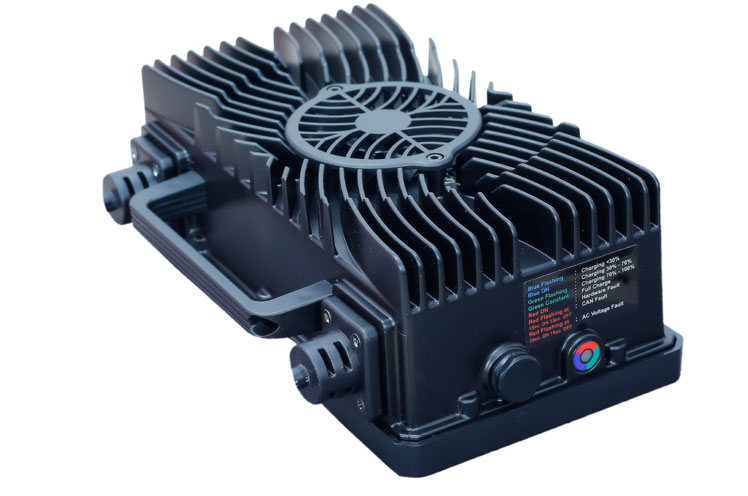

3 - Wheeler Charger (CAN & RS485)


Specifications: 15.0A / 20.0A / 25.0A / 30.0A Charger
DC Output :
Maximum Output Voltage NMC: 54.6V / 58.8V / 67.2V / 71.4V / 84.0V
LFP : 54.75V / 58.4V / 69.35V / 73.0V / 83.95V / 87.6V
Nominal Voltage 48.0V / 60.0V / 72.0V / 74.0V
Maximum Current 6.0A / 7.5A / 10.0A
Efficiency > 92%/td>
Design Topology LLC.

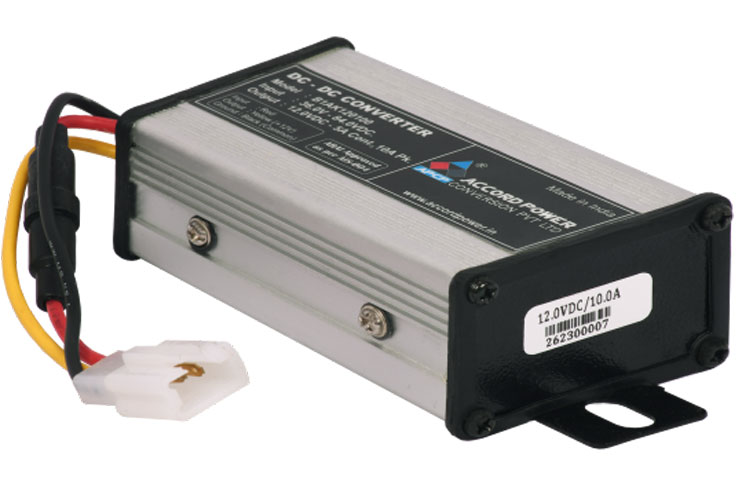

DC to DC Converter



SPECIFICATIONS : 10.0A / 15.0A / 20.0A / 25.0A / 30.0A
DC Output :
Output Voltage 13.2V
Power 120W, 180W & 240W
Current 5.0A, 10.0A, 15.0A & 20.0A
Efficiency > 84%
